High Pressure at Low Air Volume Centrifugal Fan
| Stok | Tersedia |
| Kategori | East Force |
High Pressure at Low Air Volume Centrifugal Fan
Spesifikasi High Pressure Centrifugal Fan
High Pressure Centrifugal Fan
HIGH PRESSURE, SMALL AIR VOLUME BLOWER
EASTFORCE Centrifugal Fan type BC suitable for pressure up to 30” wg. The Fan has an overall good efficiency and volume-pressure characteristic with stable performance. Built in all-welded and heavy duty construction..
APPLICATION
Type BC Fan are widely applicable for industrial plants, e.g fans for boiler, oil and gas burners, Pneumatic transport in palm oil mil and other field which requiring high pressure.
DESIGN
All sizes can be supplied for direct coupling to motor shaft or for V belt drive using heavy duty Plummer block bearings. In standard design the Fan is delivered in all welded scroll casing and long backward curved impeller made of mild steel plate. Finished with 2 coats of anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring steady, Vibrationless operation. Standard Fan shall complete with inlet netting.
OPTIONS
Anti Vibration Mountings, Special Design for hot air or smoke, Heat Resistant paint.
- Electric motor
3 phase induction motor, IE2 eff, Class F insulation, IP 55 380/660 VAC, 50 Hz
- Bearings
SKF Spherical Roller Bearing with
SKF Plummer Block / Eq.
- Drive
SKF V-belts Drive / Eq.
- Pulley
SKF Taper Lock Pulley / Eq.
- Frame
C-Channel Base Frame
- Shaft Material
KRUPP 1191 (EN9)
- Body Material
MS Plate
- Impeller Material
MS Plate
- Hub
Steel Machining
- Finishing
Two coats of anti rust primer and single coat of epoxy based finishing paint
- Damper
Inlet damper
|

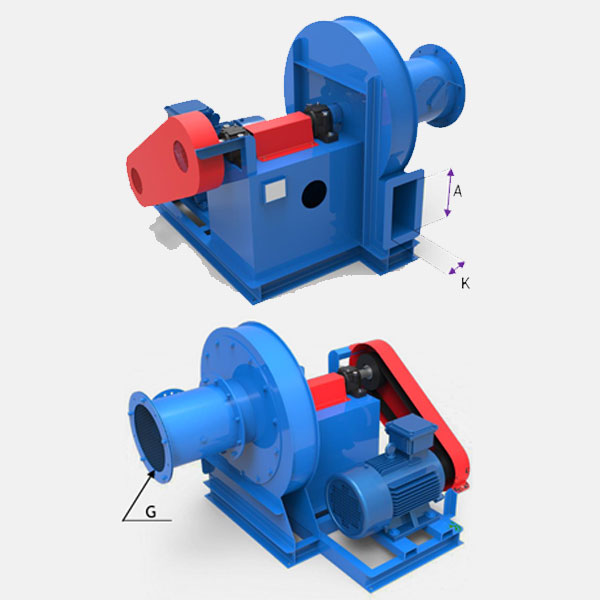

FAN SIZE |
G | A | K |
| (mm) | (mm) | (mm) | |
| EF 980-BC | 125 | 105 | 56 |
| EF 1240-BC | 160 | 132 | 70 |
| EF 1570-BC | 200 | 168 | 88 |
| EF 1970-BC | 250 | 210 | 109 |
| EF 2480-BC | 315 | 265 | 138 |
| EF 2790-BC | 356 | 298 | 156 |
| EF 3150-BC | 400 | 336 | 176 |
| EF 3540-BC | 450 | 380 | 198 |
| EF 3940-BC | 500 | 420 | 218 |
