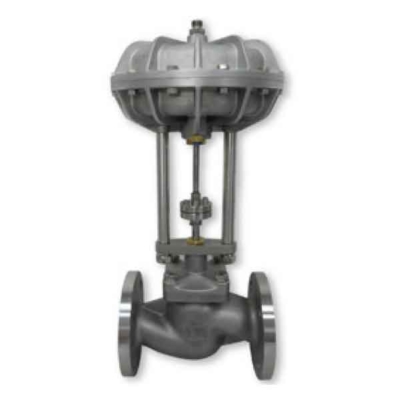

High Pressure Control Valve Keyvalve
| Stok | Tersedia |
| Kategori | Keyvalve |
High Pressure Control Valve Keyvalve
Exhibit Product Description :
KEYVALVE is a manufacturer of high quality Butterfly Valves and Control Valves. All KEYVALVE products are manufactured in accordance to European Pressure Equipment Directive 97/23/EC (Module H) and KEYVALVE is certified in accordance with TUV ISO 9001:2008.
KEYVALVE Butterfly Valves are available in (stainless steel, cast steel, ductile iron and cast iron), Valve seats are available in PTFE+EPDM and HT-EPDM. Working temperature range works from -20 to +150 (degree Celsius), pressure rating available at 1.0MPa or 1.6MPa, size available from DN50 to DN500.
KEYVALVE Control Valves are ideal for steam and hot oil applications and specially built for textile dyeing and finishing machinery, materials availalbe (stainless steel, cast steel, ductile iron), models for maximum working temperature at 250, or 350, or up to 400 (degree celsius), pressing rating available at PN10, or PN16, or up to PN100.
KT-28 / KT-38 / KP-28 / KP-38 Control Valve Series
Features and Benefits:
1) Features with regulation and shut-off functions, with options of electric and pneumatic actuators for different applications requirements.
2) Compact structure, high flow rate, minimal flow resistance, low pressure drop and equal-percentage flow characteristic providing precise modulating control.
3) Two perforated cages design (based on the unique drilled hole technology) is efficiently to create lower velocity flow stream, providing high performance in noise abatement and preventing formation of flashing and cavitation, proven to extend service life for the valve and heat exchanger.
4) Constructed of hard alloy, the hardened surfaces of valve plug and seat ring provide excellent control on leak seal and eliminate the potential damaging effects by debris or impurities contained inside the medium, resulting in longer valve life.
5) Unique stem seal design requires no maintenance and maintains reliable leak-tight seal for extended cycle life.
