Low Pressure at High Air Volume Centrifugal Fan
| Stok | Tersedia |
| Kategori | East Force |
Low Pressure at High Air Volume Centrifugal Fan
Spesifikasi Low Pressure Centrifugal Fan
Low Pressure Centrifugal Fan
LOW PRESSURE AT HIGH AIR VOLUME
EASTFORCE Centrifugal Fan Type L suitable for commercial ventilation and air conditioning. The fans have been designed with high efficiency and universal installation.
APPLICATION
Type L Fan are widely applicable for palm kernel recovery plant for kernel & nut drying silos as well as aeration fan for kernel bulking silos.
DESIGN
The L Fan has 7 standard sizes with impeller diameter from 315mm to 900mm. All sizes can be furnished on order with the 16 type of discharge position either clockwise or anti clockwise. It has backward curved impeller blade, welded construction and designed for relatively high speed. All sizes can be supplied for direct coupling to motor shaft of for V belt drive using heavy duty Plummer block bearings. Finishes with 2 coats of anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring vibrationless operation. Standard Fan shall have Fan Inlet Flange.
OPTION
Anti Vibration Mountings, Special Design for hot air Fan Outlet Multivane Damper.
- Electric motor
3 phase induction motor, IE2 eff, Class F insulation, IP 55 380/660 VAC, 50 Hz
- Bearings
SKF Spherical Roller Bearing with
SKF Plummer Block / Eq.
- Drive
SKF V-belts Drive / Eq.
- Pulley
SKF Taper Lock Pulley / Eq.
- Frame
C-Channel Base Frame
- Shaft Material
KRUPP 1191 (EN9)
- Body Material
MS Plate
- Impeller Material
MS Plate
- Hub
Steel Machining
- Finishing
Two coats of anti rust primer and single coat of epoxy based finishing paint
|

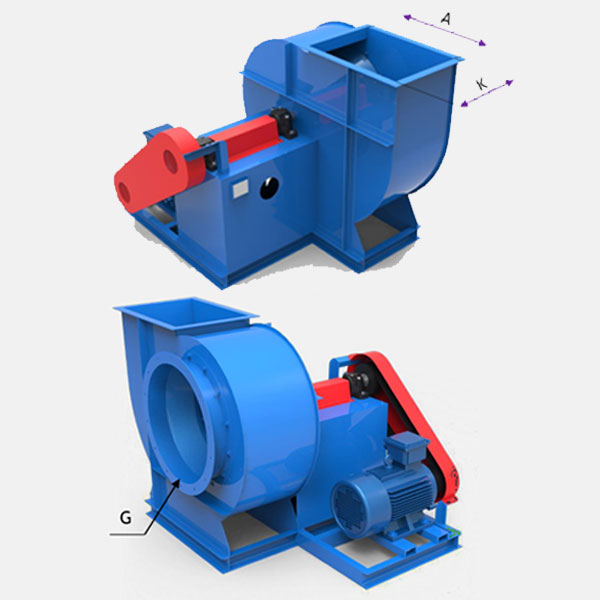

FAN SIZE |
G | A | K |
| (mm) | (mm) | (mm) | |
| EF 980-L | 250 | 250 | 175 |
| EF 1240-L | 315 | 315 | 220 |
| EF 1570-L | 400 | 400 | 280 |
| EF 1970-L | 500 | 500 | 350 |
| EF 2480-L | 630 | 630 | 440 |
| EF 2790-L | 710 | 710 | 497 |
| EF 3150-L | 800 | 800 | 560 |
| EF 3540-L | 900 | 900 | 630 |
| EF 3940-L | 1000 | 1000 | 700 |
Low Pressure at High Air Volume Centrifugal Fan
| Dilihat | 186 kali |
| Diskusi | Belum ada komentar |
Produk Terkait

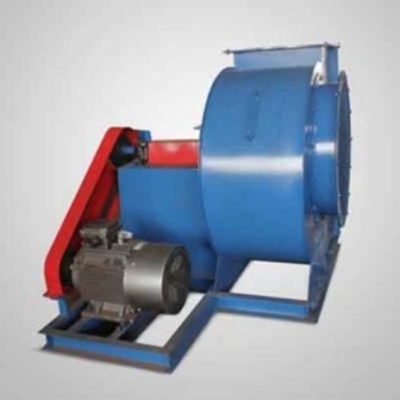

Spesifikasi High Pressure Centrifugal Fan High Pressure Centrifugal Fan HIGH PRESSURE, SMALL AIR VOLUME BLOWER EASTFORCE Centrifugal Fan type BC suitable for pressure up to 30” wg. The Fan has an overall good efficiency and volume-pressure characteristic with stable performance. Built in all-welded and heavy duty construction.. APPLICATION Type BC Fan are widely applicable for industrial plants,… selengkapnya
