Manifold Needle Valve
| Stok | Tersedia |
| Kategori | Aplisens |
Manifold Needle Valve
Spesifikasi Manifold Needle Valve
3-valve and 5-valve manifold are use where relative pressure transmitter are installed. They enable essential operations to be performed on the transmitters, such as starting up a transmitter or setting the zero position in conditions of static or atmospheric pressure. The five-valve manifold also enables a calibrator to be connected for metrological testing of the transmitter. The VM-3 and VM-5 have a modern lightweight construction. The high precision of manufacture enables individual valves to be opened and closed easily.

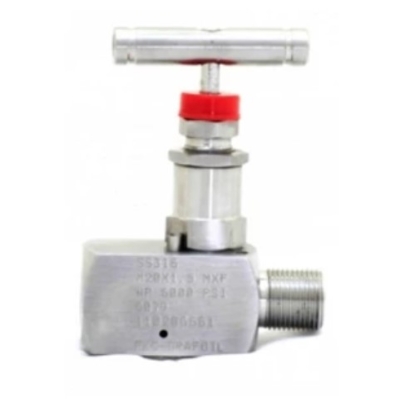

Needle Valve VM-1-R/R
Material 316ss
Medium temperature, working pressure – according to the graph on page IV/3
Input 1/2NPT F, output 1/2NPT F, Graphite packing, no vent port
Ordering code :
Valve VM-1-R/R/_
- Set of wildable stainless steel connectors (316ss)
- Set of weldable steel connectors (K11562)
- Set of connectors with Ø12 clamping ring
- Set of connectors with Ø14 clamping ring
