Medium Pressure at Medium Air Volume Centrifugal Fan
| Stok | Tersedia |
| Kategori | East Force |
Medium Pressure at Medium Air Volume Centrifugal Fan
Spesifikasi Medium Pressure Centrifugal Fan
- Electric motor
3 phase induction motor, IE2 eff, Class F insulation, IP 55 380/660 VAC, 50 Hz
- Bearings
SKF Spherical Roller Bearing with
SKF Plummer Block / Eq.
- Drive
SKF V-belts Drive / Eq.
- Pulley
SKF Taper Lock Pulley / Eq.
- Frame
C-Channel Base Frame
- Shaft Material
KRUPP 1191 (EN9)
- Body Material
MS Plate
- Impeller Material
MS Plate
- Hub
Steel Machining
- Finishing
Two coats of anti rust primer and single coat of epoxy based finishing paint
- Damper
Multi oppose outlet damper
|

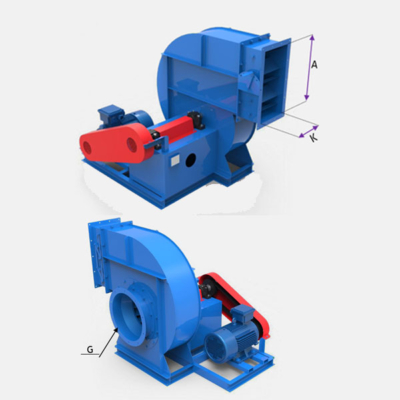

FAN SIZE |
G | A | K |
| (mm) | (mm) | (mm) | |
| EF 1970-S | 400 | 500 | 245 |
| EF 2480-S | 450 | 630 | 308 |
| EF 2790-S | 500 | 710 | 348 |
| EF 3150-S | 560 | 800 | 392 |
| EF 3540-S | 630 | 900 | 440 |
| EF 3940-S | 710 | 1000 | 490 |
Medium Pressure at Medium Air Volume Centrifugal Fan
