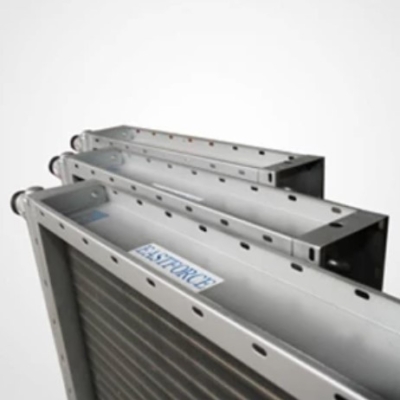

Multi Rows of Tube With Multi Pass
| Stok | Tersedia |
| Kategori | East Force |
Multi Rows of Tube With Multi Pass
Spesifikasi Multi Rows atau Multi Pass
- Working Fluid
Saturated steam
- Working Pressure
3,5 bar.g @ 150 0C
- Tubes
Copper 5/8” x 1,2 mm thickness
- Fins
Aluminium corrugated single wave pattern 0,2 mm thickness
- Fins pitch
3 mm
- Frame
Galvanized iron 1,5 mm thickness
- Header
Carbon steel pipe sch. 40
- Connection
BSP threaded
- Numer of row / pass
2 rows / 2 passes
|
NO |
HEATER SIZE |
Heating Area | Outer Dimension | Header & Connection
Size |
Number of
Tube/ Row |
Total Number of
Tube |
|||
| FH
(mm) |
FL
(mm) |
H
(mm) |
L
(mm) |
D
(mm) |
|||||
| 1 | EF 24/24/2R/2P-1,25″ | 609,6 | 600 | 700 | 700 | 160 | 1,25″ | 16 | 32 |
| 2 | EF 24/32/2R/2P-2″ | 609,6 | 800 | 700 | 900 | 160 | 2″ | 16 | 32 |
| 3 | EF 24/39/2R/2P-2″ | 609,6 | 1000 | 700 | 1100 | 160 | 2″ | 16 | 32 |
| 4 | EF 24/63/2R/2P-2,5″ | 609,6 | 1600 | 700 | 1700 | 160 | 2,5″ | 16 | 32 |
| 5 | EF 32/39/2R/2P-2″ | 809,6 | 1000 | 900 | 1100 | 160 | 2″ | 21 | 42 |
| 6 | EF 39/39/2R/2P-2,5″ | 1028,7 | 1000 | 1100 | 1100 | 160 | 2,5″ | 27 | 54 |
| 7 | EF 39/39/3R/2P-2,5″ | 1028,7 | 1000 | 1100 | 1100 | 160 | 2,5″ | 27 | 81 |
| 8 | EF 39/47/2R/2P-2,5″ | 1028,7 | 1200 | 1100 | 1300 | 160 | 2,5″ | 27 | 54 |
| 9 | EF 39/63/2R/2P-2,5″ | 1028,7 | 1600 | 1100 | 1700 | 160 | 2,5″ | 27 | 54 |
Multi Rows of Tube With Multi Pass
| Dilihat | 96 kali |
| Diskusi | Belum ada komentar |
