Multi Rows of Tube With Single Pass
| Stok | Tersedia |
| Kategori | East Force |
Multi Rows of Tube With Single Pass
Spesifikasi Multi Rows atau Single Pass
- Working Fluid
Saturated steam
- Working Pressure
3,5 bar.g @ 150 0C
- Tubes
Copper 5/8” x 1,2 mm thickness
- Fins
Aluminium corrugated single wave pattern 0,2 mm thickness
- Fins pitch
3 mm
- Frame
Galvanized iron 1,5 mm thickness
- Header
Carbon steel pipe sch. 40
- Connection
BSP threaded
- Numer of row / pass
2 rows / 1 pass
|

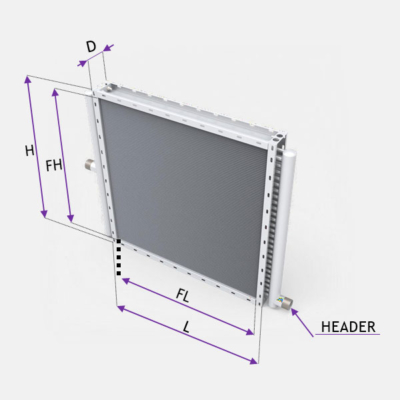

NO |
HEATER SIZE |
Heating Area | Outer Dimension | Header & Connection
Size |
Number of
Tube/ Row |
Total Number of
Tube |
|||
| FH
(mm) |
FL
(mm) |
H
(mm) |
L
(mm) |
D
(mm) |
|||||
| 1 | SC 39/39/2R/1P-2,5” | 991 | 991 | 1067 | 1067 | 127 | 2,5″ | 26 | 52 |
| 2 | SC 39/39/3R/1P-3” | 991 | 991 | 1067 | 1067 | 127 | 3″ | 26 | 78 |
| 3 | SC 42/42/2R/1P-2,5” | 1067 | 1067 | 1105 | 1105 | 127 | 2,5″ | – | – |
Multi Rows of Tube With Single Pass
