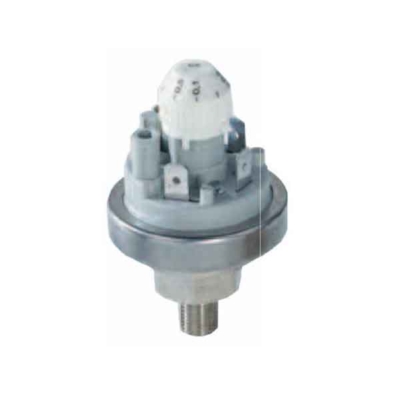

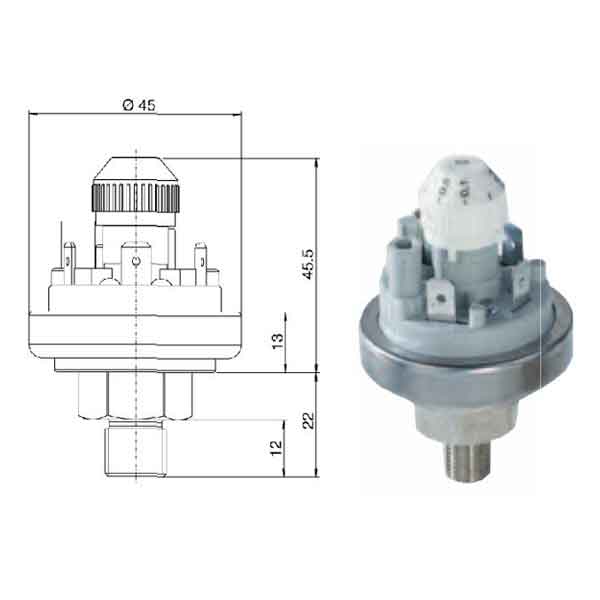

Pressure Switch 901.63 – Crew End Beck Prescal
Temperature range
Ambient temperature from -200C to 850C
Temperature of media from 850C or 1300C depending on material of pressure connection and diaphragm
Diaphragm material
Depending on media NBR, Silicone, FKM (Viton), EPDM For 901.8x Silicone
Electrical rating
Values indicated for resistive load AgNi-contacts : 6 (1.5) A/250 VAC
2 A/24 VDC
Gold-plated contacs : 100 mA/24VAC
30 mA/24 VDC
Ag-Ni contacts up to 10 A/250 VAC can be supplied upon request
Electrical connection
AMP connection 6.3 mm x 0.8 mm DIN 46244
Life
Minimum 106 cycles
Damping
Restrictor alternatively with 0.3/0.5/0.8 mm diameter
Accessories
Various mounting brackets and protection caps with IP44, IP 54 and IP 65
Mounting position
Mounting in any position, to be specified for settings below 100 mbar
