Temperature Transmitter Verca
| Stok | Tersedia |
| Kategori | Verca |
Tentukan pilihan yang tersedia!
INFO HARGA
Silahkan menghubungi kontak kami untuk mendapatkan informasi harga produk ini.
Temperature Transmitter Verca
| Verca Temperature Sensor | |
| Technical Performance | |
| Model | VCA-TT-PT100-200C |
| Output | 4-20mA |
| Temp Range | 0-200˚C |
| Neck Tube | 100mmL |
| Sheath diameter | 12mm |
| Instrument connection | ½” NPT |
| Enclosure | PRE head ( Robotic Head) c/w PR Transmitter |
| C/w Bar stock Thermowell protective | |
| Pressure Connection | ½” NPT |
| Instrument connection | ½” BSP |
| Sheath diameter | 25mm OD |
| Sheath lenght | 150mmL ( Length included thread) |
| Sheath bore | 15mm ID |
| Material | 316L stainless steel |

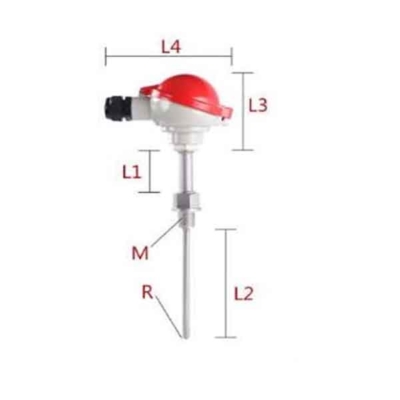

Measuring range :
- Cold Junction length L1 : 100mm (standard)
- Sensor diameter R : 6mm (standard)
- Thread type M : M20*1.5 (standard)
- Fitting length L2 : 30mm (standard)
- Output : 4-20 mA, 1-5 V (with transmitter)
- Installation : flange, clamp, direct insertion, screw base Connection head length L3 : 88mm (standard)
- Connection head length L4 : 91mm (standard)
